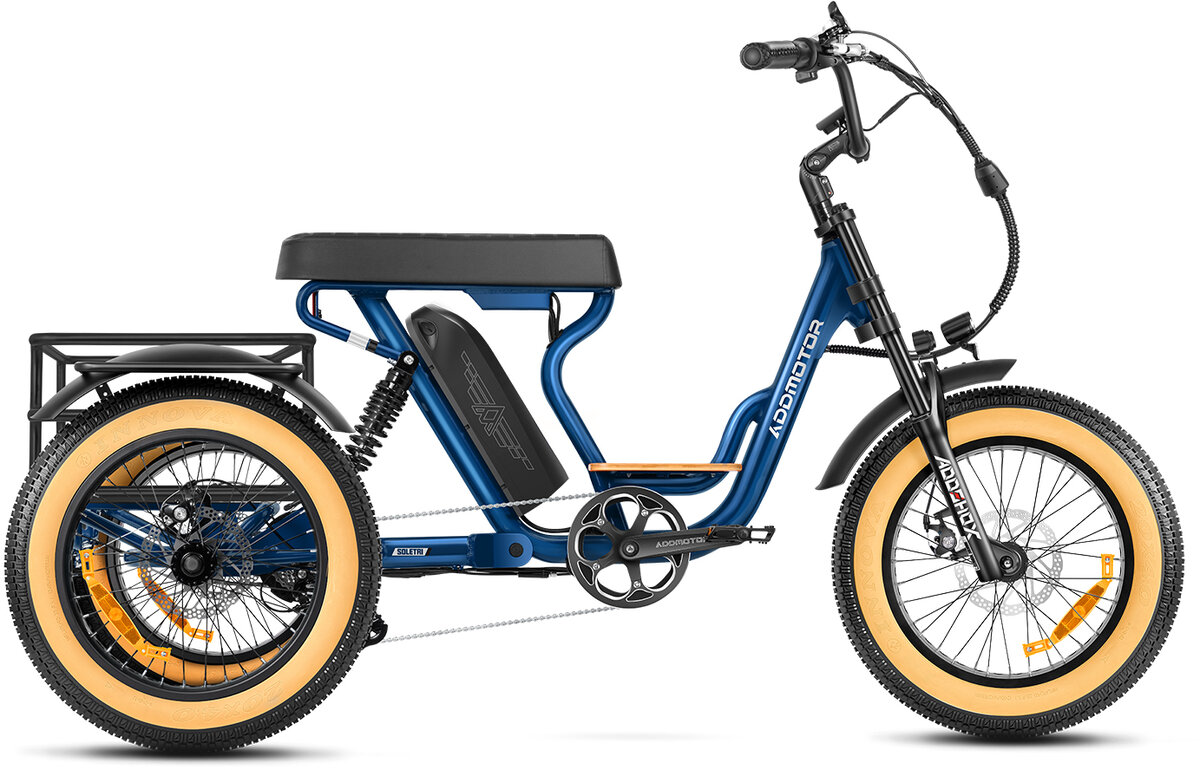

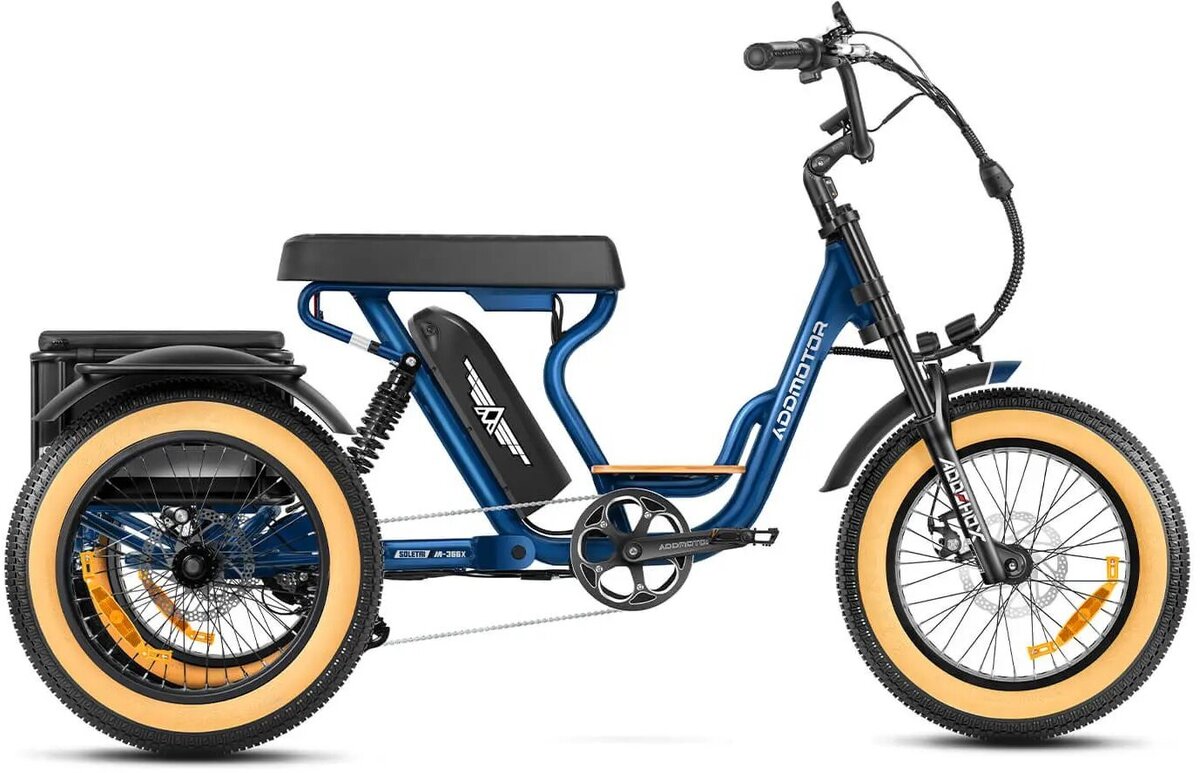

Addmotor Soletri M-366X Full-Suspension eTrike

Addmotor Soletri M-366X Full-Suspension eTrike
  • Color: Neptune Blue
  • Color: Red
$3,099.99
$3,339.99
Color:
Please select options Unavailable

Details

EB 2.0 Electric Trike w/ Parking Brakes
This electric trike is everything you've come to expect. The parking brakes make it safer. Plus Addmotor latest EB 2.0 electrical system, the M-366X is ready for your leisurely riding.

The Ultimate Choice Of Your Adventure
Soletri M-366X has a step-thru bike frame, making it easier to ride. Its three-wheel design also leaves room for a rear basket behind 2 riders. It can help you on many trips.


Front Suspension Fork: 80mm Travel
The front fork of the M-366X etrike is designed to effectively absorb shocks and impacts from the front wheel.
Rear Dual Suspension

Experience a comfortable ride with the rear suspension of the M-366X etrike. Designed to absorb impacts and maintain traction and stability, it provides enhanced comfort when navigating obstacles.
Improved Traction

This system ensures a continuous connection between the trike's wheels and the road surface, enhancing stability and traction for a confident and controlled ride.

Measurement

Suits riders in the height range of 5'2"-6 '2"

Max load capacity is 350+100 lbs

measurement image of soletri M-366x etrike

1Total Length 76.7''

2Wheelbase 54''

3Handlebar Height 42''

4Seat Height 32.5''

5Standover Height 17"

6Bottom Bracket Height 12.4"

7Saddle Size 23.5" X 8.5"

8Rear basket 21'' X 17'' X 9.8''

9Reach 11.8''

10Total Width 32.7''

11Bike weight 121 lbs

12Handlebar Width 30"

Motor
Addmotor 48V*750W Rear Brushless Gear Motor. Top speed at 20 mph.
Battery
Samsung Lithium-ion Cell 20AH (21700-5000mah), 8-10 Hours Fully Charged Time, Rated For 1000-1500 Cycles
Display
Addmotor EB 2.0 Multi-Function LCD Display (Increase to 7 PAS)

Controller
Addmotor EB 2.0 25A Controller, Upgraded to A Chip Type
Throttle
Variable Speed Control - 1/2 Twist Throttle With Power-Cut Switch
Headlight
Supplies a brightness of 40 lumens, a visible distance of 200m, and a 180° side view.

Taillight
UL certificate, With driving light, left and right turn signals, danger light, flashlight, brake light

Charger
48V*2.0Ah 5 Pins US Standard DC Charger, 7-shaped Head Design
Pedal Assist
Intelligent 7 Levels Pedal Assist, Torque Sensor (7 PAS)
Charger Port
5 Pins With Auto Magnetic Suction Customized Snap Lock
Range
Up to 85 Miles Per Charge with PAS 1 (Estimate Miles)



Wiring
Water-Resistant Connectors and Wiring
Harness
Frame
6061 Aluminum Alloy Step-Thru Frame with Wooden Footrest
Front Fork
Addshox Spring Suspension Fork, Triple Clamp, 32.5mm Steel Stanchions, 80 mm Travel, Preload Adjust, Boost 135 mm Hub Spacing, 9 mm Skewer with Bolts
Brake Rotors
Tektro Aries Mechanical Disc with 180 mm Rotors, Tektro Four-Finger Levers with Rubberized Edge and Motor Inhibitors
Gearing
7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 Cassette 14-28 Tooth
Derailleur
Shimano 7 Speeds / ALTUS M310
Cranks
Ounce, Alloy, 170 mm Length, 42 Tooth Chainring with Double-Sided Alloy Chain Guard
Pedals
Wellgo Alloy Platform with Pins
Headset
Neco, Threadless Internal Cups, Straight 1-1/8”
Stem
Promax, Alloy, Adjustable Angle (-10º to 100º), Alloy, 110 mm Length, Four 10 mm Spacers
Grips
Ergonomic, Stitched Faux Leather, Black
Saddle
Banana Seat (23” x 8.5”), Faux Leather, Black
Rims
Cast Alloy, Double Walled
Brake
Tektro Aries Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edge, Motor Inhibitors, and Bell on Left
Brake Disc
180MM rotors
Tires
Kenda GIGAS Puncture-resistant 20" X 4.0" Inches Durable Tires

Handlebar
Adjustable U Style Curved Handlebar, Adjust The Angle and Height

Front Wheel
Quick Release

Spokes
12-Gauge High-Strength Spokes
Fenders
Aluminum, Front Fender and Rear Fender Included

Horn
Included Electric Horn, 108 Maximum Decibel, 492 Foot away transmitted
Shifter
SHIMANO Right Thumb Shifter 7-Speed, SIS Index System

Part Numbers

Option MPN Store SKU
Neptune Blue EB366X74 210000034435
Red EB366X72 210000034430
