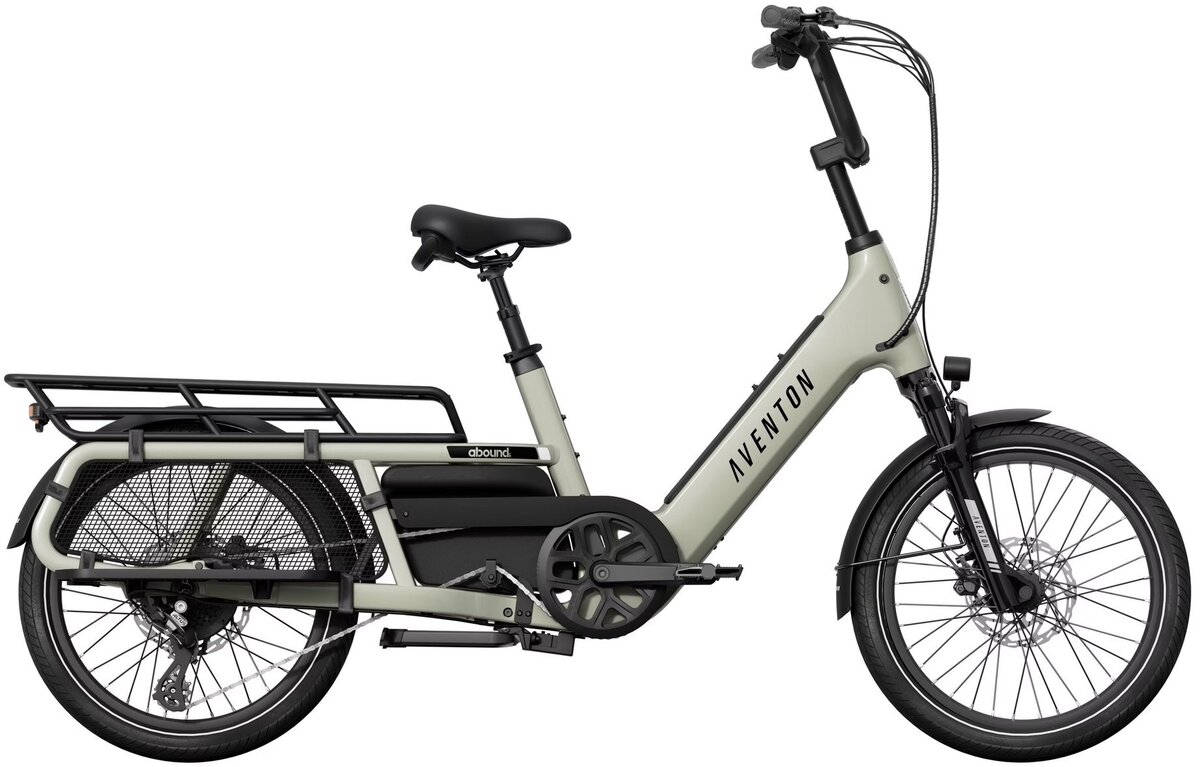

Aventon Abound LR E-bike

Aventon Abound LR E-bike
  • Color: Sage
  • Color: Matte Stealth
$1,999.99
Color:
Size: One Size
Please select options Unavailable

Details

The Abound LR is the answer to all your cargo conundrums! The 750W motor, long rear rack, and 440lb payload capacity make this the ultimate cargo carrier. Whether you're loading up the kids, your beach day essentials, or your most ambitious grocery haul, the Abound LR is ready to take on any challenge. With a gravity cast frame, adjustable quill stem, front suspension, and suspension seatpost, you can ride confidently and comfortably no matter what you're bringing along. With the addition of ACU technology, you'll rest assured knowing you can locate and control your bike from anywhere. The possibilities for what you can carry are endless, so load up and enjoy the ride with Abound LR.

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.
The lockable storage bag lets you store and protect the valuable items you might need to bring along for the long haul. Create your own 3 digit combo password to unlock the zippers and access your essentials.
Rest assured that your passengers have a place to rest their feet and ride comfortably out of harm's way
A suspension fork with 50mm of travel provides comfort for you and your cargo.
140mm of vertical adjustment paired with stylish BMX handlebars make for a comfortable, customizable fit. The integrated quill stem and handlebar ensure you can confidently maneuver and transport cargo with confidence.
The smart remote locking† functionality lets you immobilize your bike right from the Aventon app. And the Geofencing† feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control
Quickly and easily activate a kickstand lock from your display or the Aventon app. Furthermore, whenever your bike is moved or tampered with, an alarm system will activate audio and visual alerts to deter theft.
Create your own six input passcode using the control pads on the bike display. With a keyless battery system allowing you to remove your battery directly from your bike display, no need to keep track of another set of keys. All that's left to worry about is when you can ride next.


The Abound LR ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area that only allows Class I E-bike or throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your E-bike in light rain. It won't be harmed by spray from a wet road or raindrops. Your E-bike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your E-bike. *Max range determined using PAS 1 on flat terrain with a rider weight of 160 lb.*

Total Weight Limit

440 lbs

Rider Height

4'11" - 6'3"

Class

Class 2 Ebike

Water Resistance

IPX4

Range

Up to 60 miles

Frame

Gravity Cast 6061 Single-Butted Aluminum Alloy with Internal Battery

Fork

Threaded Steerer Tube for Quill Stem 15x110 spacing, 51mm travel, adjustable lockout black stanchions

Rear Spacing

175mm

Fork Spacing

110mm

Front Wheel

Double Wall Aluminum, 20in, 36hole, 13g, 20x110 Thru Axle, Schrader Valve

Rear Wheel

Double Wall Aluminum, 20in, 36hole, 12g, Nutted Hub Drive Motor, Scharder Valve

Tires

20x3.0 Innova IA-2131 Urban Tire Refective Sidewalls

Motor

Shengyi 36V 750w Hub Drive with 6 speed sensors (1188W peak)

Motor Torque

80Nm

Display

Aventon BC147

Battery

Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells

Battery Weight

8.7lbs

Controller

36V/33A

Throttle

Aventon LH Handlebar Mounted

Sensors

Double Sided Bottom Bracket Torque Sensor

Charger

36V Output: 42V/ 4A

Charging time from 0% to 100%

5 hours

Lights

Front and Rear Lights Integrated w/ Turn Signals

Brakes

Front Brake

Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Rear Brake

Tektro HD-E3520 hydraulic disc brakes w/ EJ1 quick disconnect wire

Front Brake Rotor

180mm 6 bolt

Rear Brake Rotor

203mm 6-bolt

Drivetrain

Rear Derailleur

Shimano Altus RD-M310 8 Speed

Shifter

Shimano 8 Speed Trigger SL-M315-8R

Chain

7/8 speed 154L

Cassette

12-32T / 8 Speed Shimano CS HG200-8

Chainring

52 tooth

Chainring BCD

104

Crank

3pc, 165mm crank arm

Bottom Bracket

Square Taper, Sealed, Dual-Sided Torque Sensor

Pedals

9/16" Composite Platform

Cockpit

Saddle

Aventon Saddle w/ grab handle by Selle Royal

Seatpost

Aventon Suspension Seatpost, 30.9Ø, 350mm Length. 50mm travel

Seatpost Clamp

34.9mm

Handlebars

BMX Style Aluminum 31.8mm, 720mm

Grips

Aventon Ergonomic Comfort lock on grips

Headset

H886HW Peilin 28.6mm * 56mm * 56mm H19.5mm 6pcs

Included Accessories

Fenders

Included

Rear Rack

Included

Rear Rack Weight Limit

143 lbs

SizeHeight
One Size 4'11" - 6'3"

*Aventon has the right without notice to the consumer to substitute components of at least equal quality for advertised Aventon ebike components in the event of the unavailability of such advertised components.

Part Numbers

Option MPN Store SKU
Sage / One Size 1E054-0033801 210000043350
Matte Stealth / One Size 1E054-0033802 210000043352
