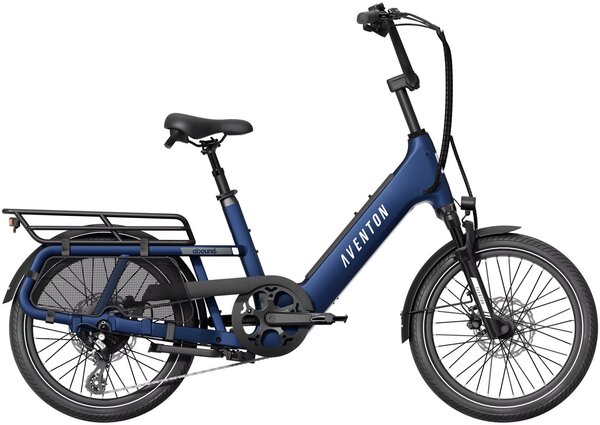

Aventon Abound SR E-Bike

Aventon Abound SR E-Bike
  • Color: Cobalt
  • Color: Cobalt
  • Color: Cobalt
  • Color: Stealth
  • Color: Stealth
  • Color: Stealth
  • Color: Haze
  • Color: Haze
  • Color: Haze
$1,899.99
Color:
Please select options Unavailable

Details

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you're cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security† and GPS† features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seat, and cutting-edge theft deterrent features†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.

The Abound SR ships as a Class II ebike, with pedal assist and throttle going up to 20 MPH. The Abound SR will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Abound SR ebike and battery is UL Certified with UL 2849 for the ebike and UL 2271 for the battery. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it's OK to ride your ebike in light rain. It won't be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain, be submerged, or subjected to a pressurized spray. Don't use a pressure washer or sprayer to clean your ebike.

Enhanced security meets advanced technology
The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock†, Geofencing† and Passcode safeguards your Abound SR and deliver an ultimate peace of mind. When cruising, you can rely on GPS† tracking, 4G† connection and cloud synchronization to get your bike stats in real time.

Remote Lock† & Geofence†
The smart remote locking† functionality lets you immobilize your bike right from the Aventon app. And the Geofencing† feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control.

E-Lock Kickstand & Alarm†
Quickly, easily and securely lock your kickstand right from your display or the Aventon app. Also, whenever there is movement or tampering, the Abound SR’s alarm† system will activate audio and visual alerts. This is theft SRsly deterred.

Passcode & Keyless Battery
Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

New Side Display with Intuitive Controls
Inspired by the simplicity and function of iconic MP3 players, the controls on the sleek new side display gives you an easy access to everything you need. Rest assured, it now has a USB-C port to conveniently charge your phone while you ride.

Adjustable Quill Stem & BMX Style Handlebars
The Abound SR is where agility meets maneuverability. Set the height of your seat for ultimate comfort and adjust the handlebars for ultimate control.

Suspension Seat
No shocks. No vibrations. Just smooth riding. The sleek, padded suspension seat absorbs the impact of the road so all you feel is the exhilaration of the ride.

Ride Tune
Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Abound SR.
w Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

Over-The-Air Updates
Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

Rear Rack & Turn Signals
With an array of accessories, the rear rack allows 143 lb weight capacity to carry your precious cargo while keeping them visible with integrated turn signals. Front & rear fenders with rear wheel mesh guards will keep you and your cargo safe from the elements.

Weight
80 lbs
Total Weight Limit
440 lbs
Rider Height
4'11" - 6'3"
Class
Class 2 Ebike
Water Resistance
IPX4
Ideal Use
Cargo
Pedal Assist
3 Levels
Range
Up to 60 miles
Folding
No
Frameset
Fork
Threaded Steerer Tube for Quill Stem 15x110 spacing, 50mm travel, adjustable lockout, black stanchions
Frame Style
Step-Through
Frame
6061 Aluminum Alloy with Internal Battery. One piece - Diecast aluminum front triangle
Wheelset
Tires
20 x 3.0 urban tire with reflective sidewalls
Wheels
20-inch, 12-gauge, 36-hole, double-wall aluminum, black
Ebike System
Motor
36V 750w Hub Drive with 6 speed sensors
Motor Torque
80Nm
ECU
Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
Aventon 4A 42V
Display
Aventon BC147
Speed
Class 2
Battery
Aventon 36V, 20Ah, 708Wh, LG 21700 cells

Rear Brake Rotor
Tektro 203mm 6 bolt
Front Brake
Tektro HD-E3520 hydraulic disc brakes
Rear Brake
Tektro HD-E3520 hydraulic disc brakes
Front Brake Rotor
Tektro 180mm 6 bolt

Chain
122 Link, 8 Speed
Chainring
52 tooth
Crank
3 piece with 165mm crank arms
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Shift Lever
Shimano SL-M315-8R 8 Speed
Cassette
Shimano CS-HG200-8 8 speed Cassette, 12-32T
Pedals
9/16" Composite Platform

Saddle
Aventon by SelleRoyal
Seatpost
30.9mm Suspension Seatpost with 50mm travel
Handlebars
BMX Style, 31.8mm bar clamp, 680mm width
Stem
Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
Seat Clamp
34.9mm Quick Release
Grips
Lock-on ergonomic
Included Accessories
Rear Rack
Included
Kickstand
Included: E-lock
Rear Wheel Mesh Guards
Included
Rear Rack Weight Limit
143 lbs
*Max range is determined using PAS 1 throughout flat terrain with a rider weight of 160 lbs.
SizeHeight
One Size 4'11" - 6'3"

*Aventon has the right without notice to the consumer to substitute components of at least equal quality for advertised Aventon ebike components in the event of the unavailability of such advertised components.

Part Numbers

Option MPN Store SKU
Cobalt 1E054-0023803 210000040300
Stealth 1E054-0023805 210000040304
Haze 1E054-0023804 210000040302
