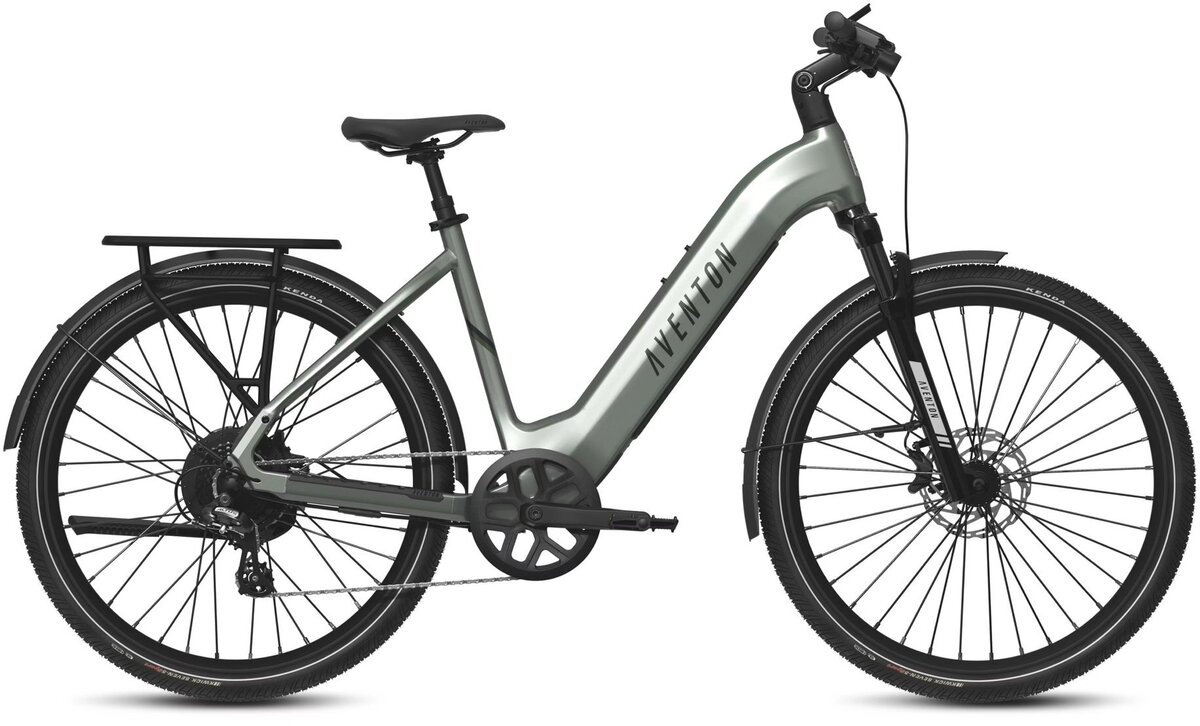

Aventon Level.3 Step-Through Electric Bike

Enhanced Security meets Advanced Technology

The revolutionary Aventon Control Unit (ACU) keeps you fully protected and always connected — all at the same time. Augmented security features including Remote Lock^†, Geofencing^† and Passcode safeguards your Level 3 and deliver an ultimate peace of mind. When cruising, you can rely on GPS^† tracking, 4G^† connection and cloud synchronization to get your bike stats in real time.

Remote Lock and Geofencing

The smart remote locking^† functionality lets you immobilize your bike right from the Aventon app. And the Geofencing^† feature lets you define the areas allowed and the distances prohibited. It’s your ride and you’re always in control

Startup Password and Keyless Battery

Customize your passcode and maximize your protection. Choose from up to six inputs and with the all-new Keyless Battery, there’s one less key on your ring, so you can just hop on and bop around.

Electronic Rear Wheel Lock

Easily activate a locking mechanism that restricts the rear wheel from rotating. This adds a layer of security when leaving your bike unattended

Suspension Seatpost

The suspension seatpost with adjustable preload allows you to customize how your seatpost absorbs the impact of the road, so all you feel is the exhilaration of the ride.

Ride Tune

Stay in perfect sync with your bike. Ride Tune lets you personalize your riding style via the Aventon App. Optimize and realize the full potential of your Level 3.

Over the Air Updates

Stay in the know while on the go. Enjoy optimal performance with intelligent over-the-air software updates through the Aventon app. No need to plug in or stop at a shop. Ride on.

Rack and Fenders

Pre-installed fenders will protect you from the elements, rain or shine, while an attached rear rack means you can transport all of your essentials, whether you're heading out for a picnic or heading home from work!

Pedal Assist and Throttle

Five levels of pedal assist mean you're in charge of how much or how little electric assist you get from your ebike, while a throttle will propel you at speeds up to 20 MPH, keeping you moving when pedaling is just an afterthought!

Water Resistance IPX4 47

Range Up to 70 Miles 47

Frame 6061 Aluminum, Gravity Cast Front Triangle 47

Fork Aventon Suspension Fork, 80mm travel, w/ lockout,coil spring. 15x100mm thru-axle, 43mm offset 47

Rear Spacing 142mm

Fork Spacing 110mm

Front Wheel 27.5in, 13g, 36hole, double wall Aluminum, Thru axle, Schrader Valve, black 47

Rear Wheel 27.5in, 12g, 36hole, double wall Aluminum, Nutted Hub Drive Motor, Scharder Valve, black 47

Tires Kenda Kwick Seven-5 Sport K1052-006 27.5 x 2.20

Motor 36V, 500W (sustained), 864W (peak)

Motor Torque 60Nm

Display Aventon BC280

Battery Removable Internal Lithium-ion. 36V, 20Ah, 708Wh, LG 21700 cells

Battery Weight 8.7lbs

Controller 36V, 24A

Throttle Aventon LH Handlebar Mounted

Sensors Double Sided Bottom Bracket Torque Sensor

Charger 36V Output: 42V/ 4A

Charging time from 0% to 100% 5 hours

Lights Front and rear lights integrated

Front Brake Magura AT-2 Hydraulic disc brake

Rear Brake Magura AT-2 Hydraulic disc brake

Front Brake Rotor Magura MDR-A 180mm 6 Bolt Rotor

Rear Brake Rotor Magura MDR-A 180mm 6 Bolt Rotor

Rear Derailleur Shimano Altus RD-M310

Shifter Shimano 8 Speed Trigger SL-M315-8R

Chain 7/8 speed 120L

Cassette 12-32T / 8 Speed Shimano CS HG200-8

Chainring 48T

Chainring BCD 104

Crankset 3pc, 170mm crank arm

Bottom Bracket Square Taper, Sealed, double sided Torque Sensor 83mmx158.5mm

Pedals 9/16" Composite Platform

Saddle Aventon Saddle

Seatpost 30.9mm Aventon Suspension Seatpost with 50mm travel

Seatpost Clamp 34.9mm

Handlebars Aluminum 31.8mm, 680mm

Grips Aventon Lock on grips

Headset Sealed Bearing Headset

Rear Rack Weight Limit 60lbs
