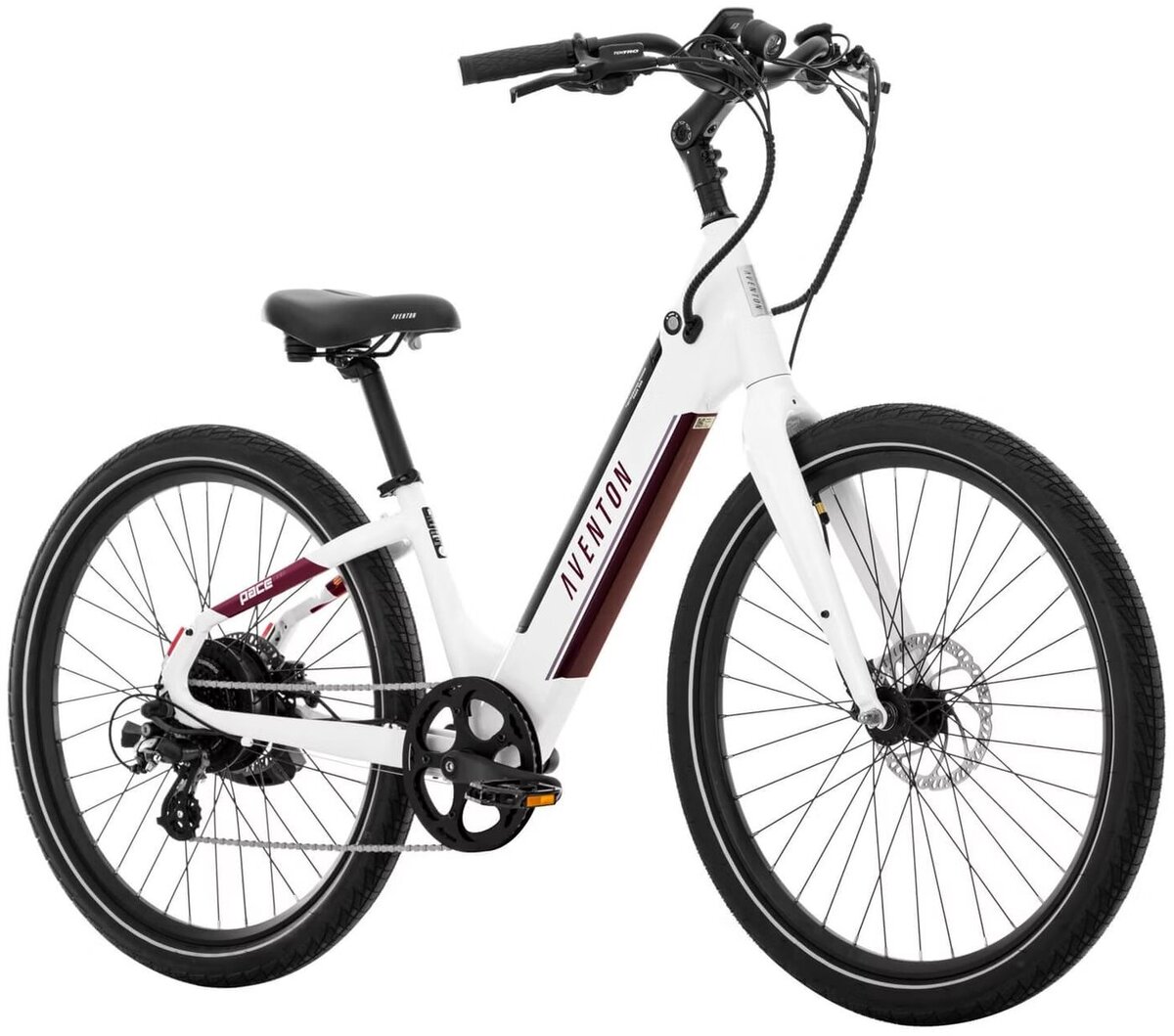

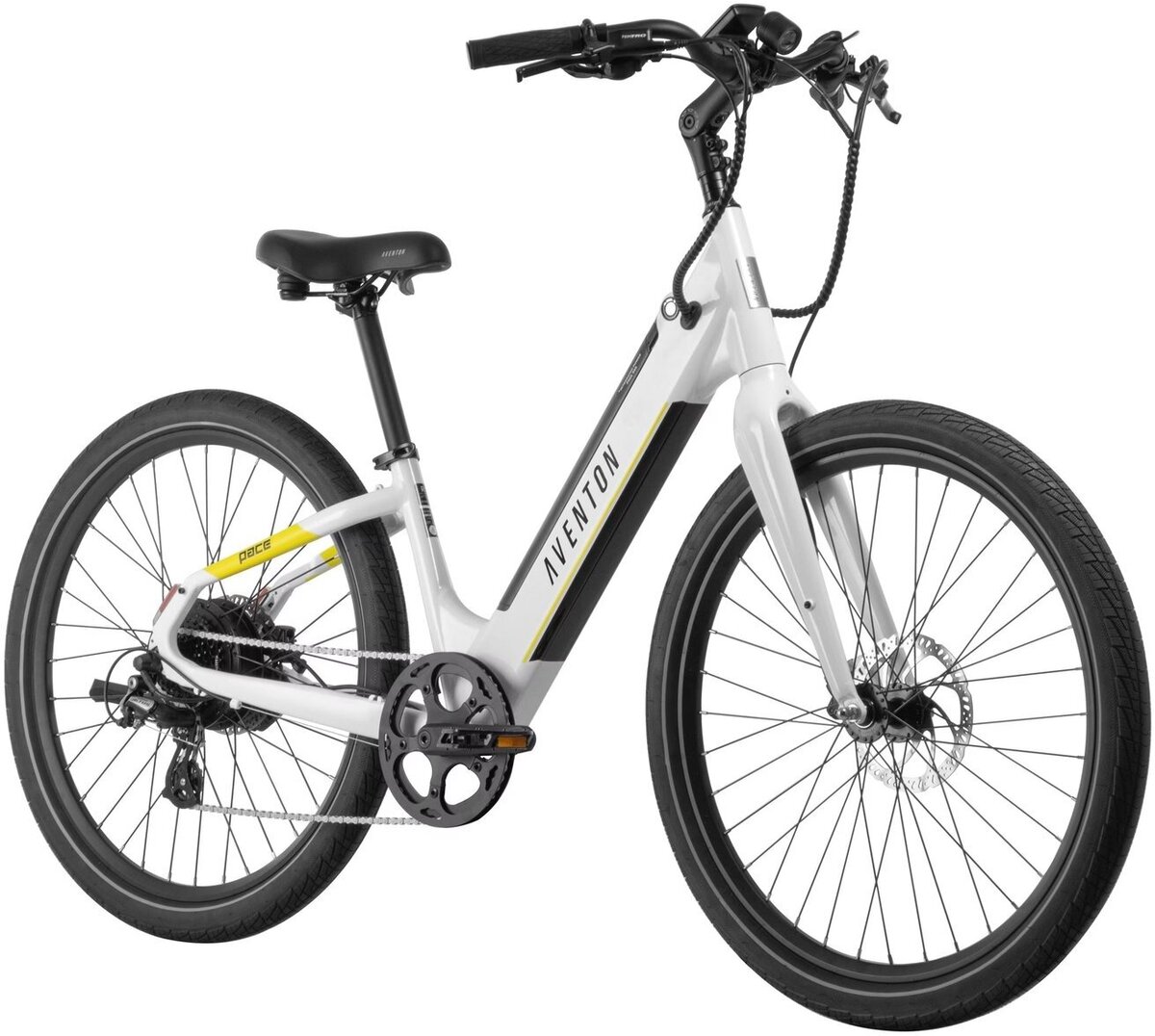

Aventon Pace 500.3 Step-Through

Aventon Pace 500.3 Step-Through
  • Color: White
  • Color: White
  • Color: White
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
  • Color: Blue Steel
$1,599.99
$1,699.99
Please select options

Details

Pace 500.3 Step-Through is easy access to fun! Its intuitive torque sensor amplifies your efforts and puts you in control of the way you cruise. Find renewed energy then set the pace at your leisure by switching between the 4 new pedal assist levels: eco, tour, sport and turbo. Take the longer route with its powerful 500W motor’s top speed of 28 mph and up to 60 miles in range. The all-new turn signal functionality will keep you protected on the road by signaling to those behind you when you’re switching lanes and making moves. Ride comfortably with its cushioned saddle, swept-back handlebars and an upright riding position. Pace 500.3 Step-Through reinvigorates the way you get around. It’ll feel like riding a bicycle for the first time, every time.

Pace 500.3 Step-Through comes in 2 sizes to suit most adults.

Regular: 4'11" - 5'7"
Large: 5'7" - 6'1"

Frame Size:                   Regular     Large
Top Tube Length:           617mm       639mm
Reach:                                 348mm       363mm
Head Tube Length:         195mm       215mm
Standover Height:           415mm       445mm
Wheelbase:                        1086mm      1108mm
Min Saddle Height:          765mm       805mm
Max Saddle Height:         965mm       995mm

Specs

MODEL Pace 500.3 Step-Through Ebike
MOTOR 500W 48V Brushless Hub Motor
THROTTLE Throttle on demand - Throttle from a complete stop
DISPLAY LCD Smart Easy Read Display with Backlight, Colorful screen with app
SPEED Up to 28 MPH on Pedal Assist
BATTERY Removable Internal Lithium-ion 48V 12.8Ah (614Wh) with LG cells
SENSORS Torque Sensor
PEDAL ASSIST 4 Levels
CHARGER 48V 3 Amp Fast Charger, 4-5 Hour Charging
RANGE Up to 60 Miles* on PAS 30 Miles on Throttle
FRAME 6061 Single-Butted Aluminum Alloy with Internal Battery
WEIGHT 52 lbs
PEDALS 9/16' Alloy Platform
FORK AE-E08-V2 AL Fork
WEIGHT LIMIT 300 lbs
BOTTOM BRACKET Square Taper, Sealed, Torque Sensor
CRANKSET 170mm w/ 48 T
REAR DERAILLEUR 8 Speed
CASSETTE 12-32T, 8 Speed
SHIFT LEVER 8 Speed Trigger
BRAKES Hydraulic Disc Brakes
CHAIN 122 Link, 8 Speed
RIM Double Wall Aluminum 36h Front & Rear
TUBES Butyl Rubber, Schrader Valve
HUBS 36H Disc Nutted Front, Nutted Rear
TIRES 27.5" x 2.1" Puncture Resistant, Reflective Sidewalls
SADDLE Aventon Saddle
SEATPOST Forged Alloy, 30.9mm 2-Bolt Clamp
STEM Threadless, 31.8mm, 90mm
SEAT CLAMP 34.9 mm Quick Release
HANDLEBARS Aluminum 31.8mm, Sweptback
HEADSET Sealed Bearing Headset
GRIPS Ergonomic Comfort
DIMENSIONS Bike Box: 150 cm x 27 cm x 86 cm

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
White / Regular 1E038-0023701 210000032391
White / Large 1E038-0024501 210000032393
Blue Steel / Regular 1E038-0023707 210000032397
Blue Steel / Large 1E038-0024507 210000032395
