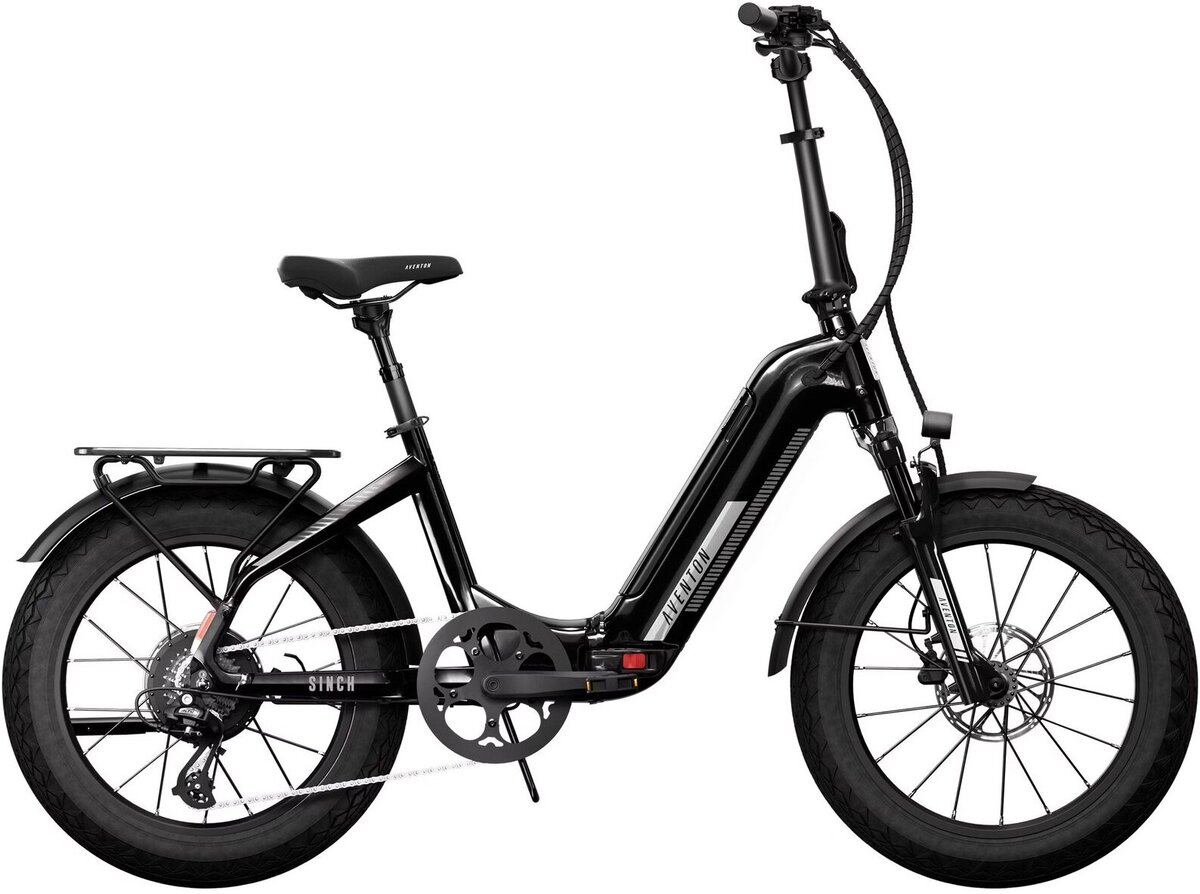

Aventon Sinch 2.5 Ebike
$1,799.99
Details
Sinch 2.5 is the perfect companion for your next adventure! Easily foldable to maximize storage space, the Sinch 2.5 is the perfect choice for a transportable, adjustable e-bike to amplify every ride. Now with upgraded hydraulic disc brakes, suspension seatpost, and a sleek new side display, the Sinch 2.5 is more comfortable and capable than ever before.
Sinch 2.5 ships as a Class II ebike, with pedal assist and throttle. Sinch 2.5 will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited.
*Max range determined using PAS Eco throughout flat terrain with a rider weight of 160 lb.
| Size | Height (inches) |
|---|---|
| One Size | 4’11” - 6'2" |
Geometry
Sinch 2.5 Ebike is available in 1 sizes to suit most adults.
| Frame Size | One Size |
|---|---|
| A - Seat Tube Length | 400mm (15.75") |
| B - Top Tube Length Horizontal | 675mm (26.6") |
| C - Bottom Bracket Drop | 0mm (0") |
| D - Head Tube Length | 165mm (6.5") |
| E - Head Tube Angle | 72° |
| F - Seat Tube Angle | 71° |
| G - Rear Chainstay Length | 420mm (16.5") |
| H - Front Wheel Center | 717mm (28.2") |
| I - Wheelbase | 1137mm (44.8") |
| J - Reach | 491mm (19.3") |
| K - Stack Height | 534mm (21") |
| L - Fork Length | 410mm (16.1") |
| M - Fork Offset | 50mm (2") |
| N - Trail | 44mm (1.7") |
| Wheel Size | 20" x 4.0" |
| Stand Over Height | 390mm (15.35") |
| Rider Height | 4'11" - 6'3" |
Frameset
Frame
6061 Single-Butted Folding Aluminum Alloy with Internal Battery
Fork
Aventon coil fork with lock out and black stanchions.
Rear Spacing
177mm
Fork Spacing
135mm
Wheelset
Front Wheel
20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, with a nutted axle, 13g stainless steel spokes (173mm NDS/175mm DS), 135mm spacing, Schrader valve.
Rear Wheel
20x4", 36-spoke, double-wall aluminum fat tire rim, black finish, hub drive motor with a nutted axle, 12g stainless steel spokes (128mm NDS/127mm DS), 177mm spacing, Schrader valve.
Tires
Innova IA-2579 20x4.0
Ebike System
Speed
Class 2
Motor
48v, 500w brushless hub motor
Motor Torque
60Nm
Display
Aventon BC147
Battery
Removable Internal Lithium-ion Battery, 48.8V, 14Ah (636.4Wh)
Battery Weight
7.6 lbs
Controller
48v 22A
Throttle
Aventon LH Handlebar Mounted
Sensors
Double Sided Bottom Bracket Torque Sensor
Charger
48V, 3 Amp Fast Charger
Charging time from 0% to 100%
4-5 Hours
Lights
Front and rear lights integrated
Brakes
Front Brake Rotor
180mm 6 bolt
Rear Brake Rotor
180mm 6 bolt
Drivetrain
Rear Derailleur
Shimano Altus RD-M310 8 Speed
Chain
114 Link, 8 Speed
Cassette
13-28T / 8 Speed Shimano CS HG200-8
Chainring
52 tooth
Chainring BCD
130
Crankset
3pc, 170mm crank arm
Bottom Bracket
Square Taper, Sealed, Dual-Sided Torque Sensor, 100x159.5mm
Pedals
9/16" Composite folding pedals
Cockpit
Saddle
Aventon Saddle
Seatpost
Aventon Suspension Seatpost, 30.9, 350mm Length
Seat Clamp
34.9mm Quick Release
Handlebars
Aluminum 25.4mm diameter, 580mm wide
Grips
Aventon glue on grips
Headset
Sealed Bearing Headset ZS44/28.6| ZS55/40
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Midnight Black / One Size | 810097172197 | 1E026-0084002 | 210000042185 |
| Sage / One Size | 810097172180 | 1E026-0084001 | 210000042183 |
