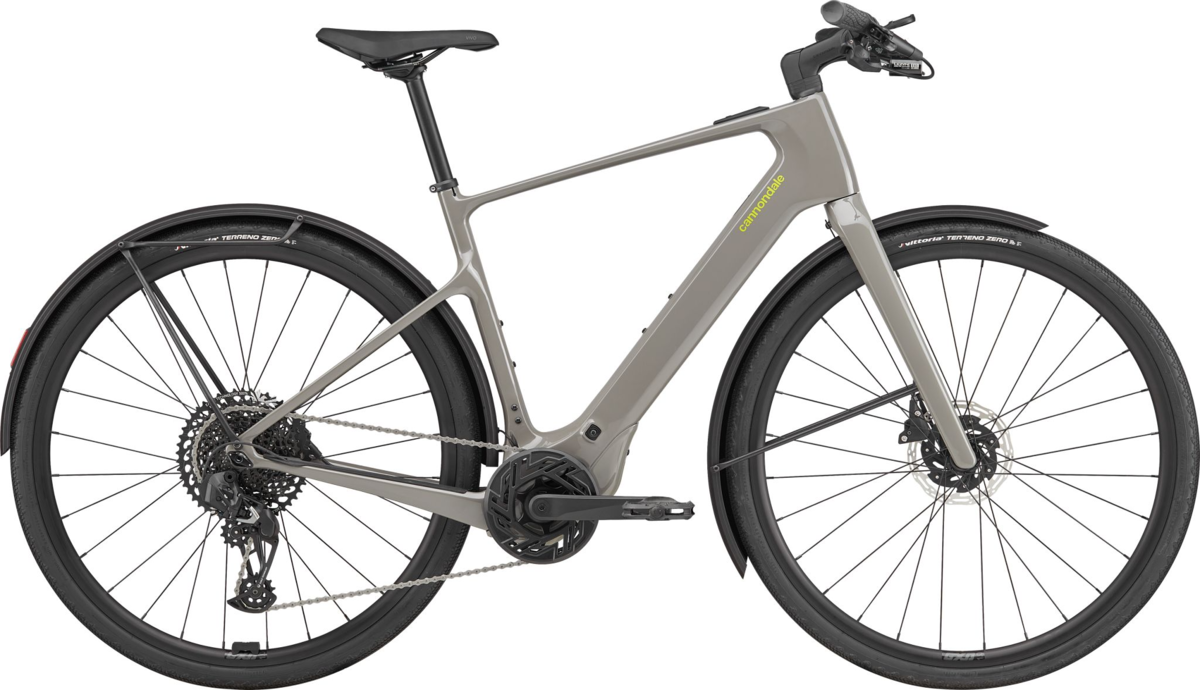

Cannondale Tesoro Neo Carbon 1
Details
Born from Racing. Built for the City.
Sharp, light, fast, and practical, this is simply the ultimate high-performance commuter e-bike.
Where it thrives
Your city, your commute
What it's built for
High-speed commuting and exploration
Highlights
- Race-derived, lightweight carbon frameset
- Light, silent, Bosch SX Sprint 28-mph drive system, with a 400Wh battery
- Wireless electronic SRAM Eagle 12-speed shifting
- Grippy, fast-rolling 700x38c Vittoria tires
Racing Tech. Premium Feel.
With a carbon frameset derived from our pro-level Synapse endurance bike, this is a seriously light (16kg) and responsive bike. Sharp handling and an athletic riding position help you slice through the streets with comfort and control.
Built with Bosch
The light but mighty Bosch Performance Line Sprint drive unit makes for easy urban exploration. It offers a smooth, powerful boost up to 28mph, then seamlessly disengages for effortless pedaling at higher speeds.
Intelligently Integrated
Tesoro Carbon looks slick, because it is. You’ll find features integrated both functionally and aesthetically, like internally-routed cables, the battery embedded in the downtube, and a compact display that lets you monitor settings on the fly –?while you fly.
| Size | X-Small | Small | Medium | Large | X-Large |
|---|---|---|---|---|---|
| Wheel Size | 700c | 700c | 700c | 700c | 700c |
| Seat Tube Length (cm) | 40.7 | 45.3 | 49.9 | 54.4 | 59 |
| Top Tube Horizontal (cm) | 54.9 | 56.3 | 57.9 | 59.5 | 61.1 |
| Top Tube Actual (cm) | 52.6 | 53.8 | 55.5 | 57.1 | 58.9 |
| Head Tube Angle | 70.2° | 71.1° | 72.0° | 72.0° | 72.0° |
| Seat Tube Angle | 73.0° | 73.0° | 73.0° | 73.0° | 73.0° |
| Standover (cm) | 71.5 | 75.1 | 79.5 | 83.8 | 87.6 |
| Head Tube Length (cm) | 11.3 | 12.9 | 15.9 | 19.3 | 22.2 |
| Wheelbase (cm) | 104.9 | 105.5 | 106.5 | 108.3 | 110 |
| Front Center (cm) | 61 | 61.6 | 62.4 | 64.1 | 65.8 |
| Chain Stay Length (cm) | 45 | 45 | 45 | 45 | 45 |
| Bottom Bracket Drop (cm) | 7.5 | 7.5 | 7 | 6.5 | 6.5 |
| Bottom Bracket Height (cm) | 27.9 | 27.9 | 28.4 | 28.9 | 28.9 |
| Fork Rake (cm) | 5 | 5 | 5 | 5 | 5 |
| Trail (cm) | 7.4 | 6.8 | 6.2 | 6.2 | 6.2 |
| Stack (cm) | 56 | 57.8 | 60.5 | 63.3 | 66 |
| Reach (cm) | 37.8 | 38.6 | 39.4 | 40.1 | 40.9 |
| Frame Size | Rider Height (in) |
|---|---|
| X-Small | 5'2" - 5'7" |
| Small | 5'5" - 5'9" |
| Medium | 5'7" - 5'11" |
| Large | 5'9" - 6'1" |
| X-Large | 6'3" - 6'9" |
Specs
| Frame | Tesoro Carbon, internal downtube battery, integrated cable routing, 148mm dropout spacing, 12mm thru-axle, SAVE, flat mount disc, removable kickstand mount (40mm Pletscher-style) |
|---|---|
| Fork | Tesoro Carbon, 1-1/8" to 1.5" Delta steerer, flat mount disc, internal routing, 12x110 thru-axle |
| Rims | Cannondale GXD10, alloy double-wall rim, 28h |
| Hubs |
Front: Formula sealed cartridge bearing, 12x110mm thru-axle Rear: Formula sealed cartridge bearing 12x148mm thru-axle |
| Spokes | Stainless Steel, 14g |
| Tires | Vittoria Terreno Zero, 700x35c |
| Crankset | FSA Bosch E-Bike, SRAM Direct Mount, 38T |
| Shifters | SRAM GX Eagle AXS Controller, wireless |
| Rear Derailleur | SRAM X1 Eagle AXS wireless electronic |
| Cassette/Freewheel | SRAM Eagle X-GLIDE 1275, 10-50, 12-speed |
| Chain | SRAM NX Eagle, 12-speed |
| Brakes | SRAM S-300, 160/160mm CenterLine X rotors |
| Brake Levers | SRAM S-300 hydraulic disc |
| Handlebars | 6061 Alloy, 31.8mm, 700mm, 7° rise |
| Tape/Grips | Ergo Lock-on Grips |
| Stem | Cannondale C1 Conceal, Alloy, 31.8, +6° |
| Headset | Integrated, 1-1/8" - 1.5" |
| Seatpost | Cannondale 3, 6061 Alloy, 27.2x400mm |
| Saddle | Selle Royal Vivo Active Ergo |
| Pedals | Sold Separately |
| Accessories & Extras | Cannondale KSA40 Kickstand K17014 & K17004 mounting bracket, Lezyne Hecto E65 headlight, Extruded alloy fenders w/ integrated rear light, rear pannier bars, SRAM AXS charger |
| Motor | Bosch Performance Line Sprint, 28mph |
| Battery | Bosch Compact Powertube 400Wh |
| Controller/Display | Top-tube System Controller w/ mini remote |
| Charger | Bosch 2A |
* Subject to change without notice.
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Stealth Grey / X-Small / 700c | 196870089716 | C66124U10XS | 210000039257 |
| Stealth Grey / Small / 700c | 196870089723 | C66124U10SM | 210000039255 |
| Stealth Grey / Medium / 700c | 196870089730 | C66124U10MD | 210000039259 |
| Stealth Grey / Large / 700c | 196870089747 | C66124U10LG | 210000039261 |
| Stealth Grey / X-Large / 700c | 196870089754 | C66124U10XL | 210000039263 |
