Details

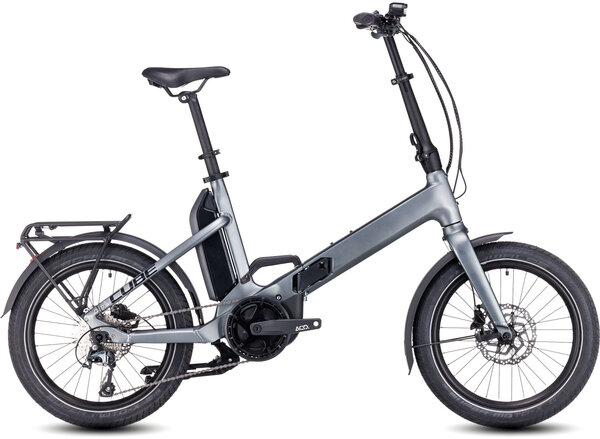

When we set out to design our foldable Bosch e-bike, we wanted it to set new standards for flexibility, mobility and functionality. The fact that it also looks great is no coincidence, because form often follows function. With its clever folding mechanism and integrated carry handle, the Fold Hybrid 500 is easy to store or transport in an efficient, space-saving size and shape. Simple saddle and handlebar adjustments mean it's quick to set up for almost any rider height. We included mudguards, a really stable kickstand and a sturdy rear carrier. And an optional front carrier – plus a wide range of bags and baskets that attach quickly and simply via innovative mechanisms – make it simple to carry whatever you need along for the ride. You'll wonder how you ever managed without it.
Combining the versatility and range of Shimano gears with the ease of use of Bosch power, the Fold Sport Hybrid is the ideal way to get across town. And, with stunning CUBE design and easy-to-use folding technology, it's also simple to carry and store. You'll soon be taking it with you everywhere...
The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!
Built to slot into your life as easily as it folds for storage or transport, the Fold Sport Hybrid 500 is the two-wheeled companion you'll wish you'd always had. With the power of Bosch's Active Plus motor, the wide range of Shimano's easy-to-use 10-speed gears and a 500Wh battery as standard, it makes light work of any trip and delivers you to your destination fresh and in good shape to continue with the rest of your day. The included rear carrier – and optional front carrier – make it easy to take everything you need with you. And, with mudguards, a sturdy kickstand and a rugged carrying handle, it has everything you need.
Drivetrain & brakes
brake system
Shimano BR-MT200, Hydr. Disc Brake (180/180)
shifters
Shimano Tiagra SL-4700
crankset
ACID E-Crank, 165mm, 42T
cassette
Shimano CS-HG500, 11-34T
chain
KMC X10
Cockpit
headset
ACROS AZF-1038, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)
Stem
Cube Folding Stem, Adjustable Length, 25,4mm Clamp
handlebar
CUBE Comfort Trail Bar, 680mm, 25,4mm
grips
ACID Travel Comfort
Wheels
rims
CUBE EX30, 32H, Disc, Tubeless Ready
front hub
Shimano HB-TX505, QR, Centerlock
rear hub
Shimano FH-TX505, QR, Centerlock
tyres
Schwalbe Super Moto-X, Double Defense, 62-406
Finishing kit
saddle
Natural Fit Sequence
seat post
Satori Sorata 34,9mm, 280mm -440mm telescoping seatpost
pedals
ACID PP Trekking
front light
CUBE Shiny 50 Lux, 12V, DC
rear light
ACID Mudguard Rear Light PRO-E, 12V, DC
kickstand
Two Leg Kickstand
mudguards
ACID 75
bell
Ring Bell
carrier
ACID 20" Semi-Integrated Carrier, ACID RILink Adapter Compatible
Part Numbers
Option | UPC | MPN | Store SKU |
---|---|---|---|
Flash Grey/black | 4054571419057 | 69541020 | 210000039105 |
Green/black | 4054571419064 | 69541520 | 210000039358 |
