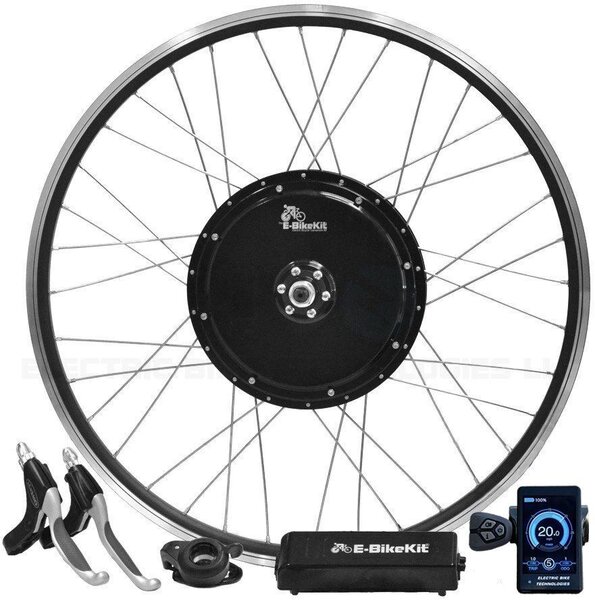

E-BikeKit Front wheel motor kit 20"

E-BikeKit Front wheel motor kit 20"
  • Battery: 10AH SLA Canvas Bag 36V
  • Battery: 9AH LI-ION Canvas Bag 48V
  • Battery: 10AH LI-ION Rack Mount 48V
  • Battery: 14AH LI-ION Frame Mount 48V
  • Battery: 14AH LI-ION Frame Mount 48V
  • Battery: 14AH LI-ION Frame Mount 48V
  • Battery: 20AH LI-ION Canvas Bag 48V
This item is currently not available.

Details

E-BikeKit Front 500-1000w Direct-Drive Hub Motor Conversion Kit w/ Pedal-Assist and Throttle On Demand functions
New Programmable LCD.
The E-BikeKit is designed for convenience, performance, and reliability. With an LCD dashboard control panel and 48v 12FET controller, the system is easy to install and even easier to use. All E-BikeKit system components are compatible with both 36v and 48v battery packs. The controller and LCD are also compatible with all motor types offered by E-BikeKit.

Your choice of battery.

Motor Specs:
Type: Direct-Drive (brushless, disc brake compatible)
Power: 500w Nominal / > 1000 @48v
Max Torque: 46N-m @48v
Max RPM: 259 @48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 19/32" (10.4mm)
Weight: 12.8 lbs. (5.8 kg)
Warranty: 1 Year (up to 48v - 600 lbs. max load)
