Details
Get your dose of singletrack on a fun hardtail that puts you in control. The combination of a lightweight hardtail frame, 130mm suspension fork, and 27.5 wheels with wide rims and high-volume tires delivers loads of traction, speed, and fun on the trail.
With its updated ALUXX SL aluminum frame, quick-handling 27.5 wheels and high-volume tires, Fathom is a great choice for technical terrain and singletrack shredding. It blends the efficient ride quality of a classic hardtail with the confident ride quality of larger tires that absorb bumps and give you more traction—so you can tackle rougher trails with total control. The frame is designed with trail-friendly geometry that includes a more relaxed head angle and a 130mm suspension fork.
Trail Tuned Design

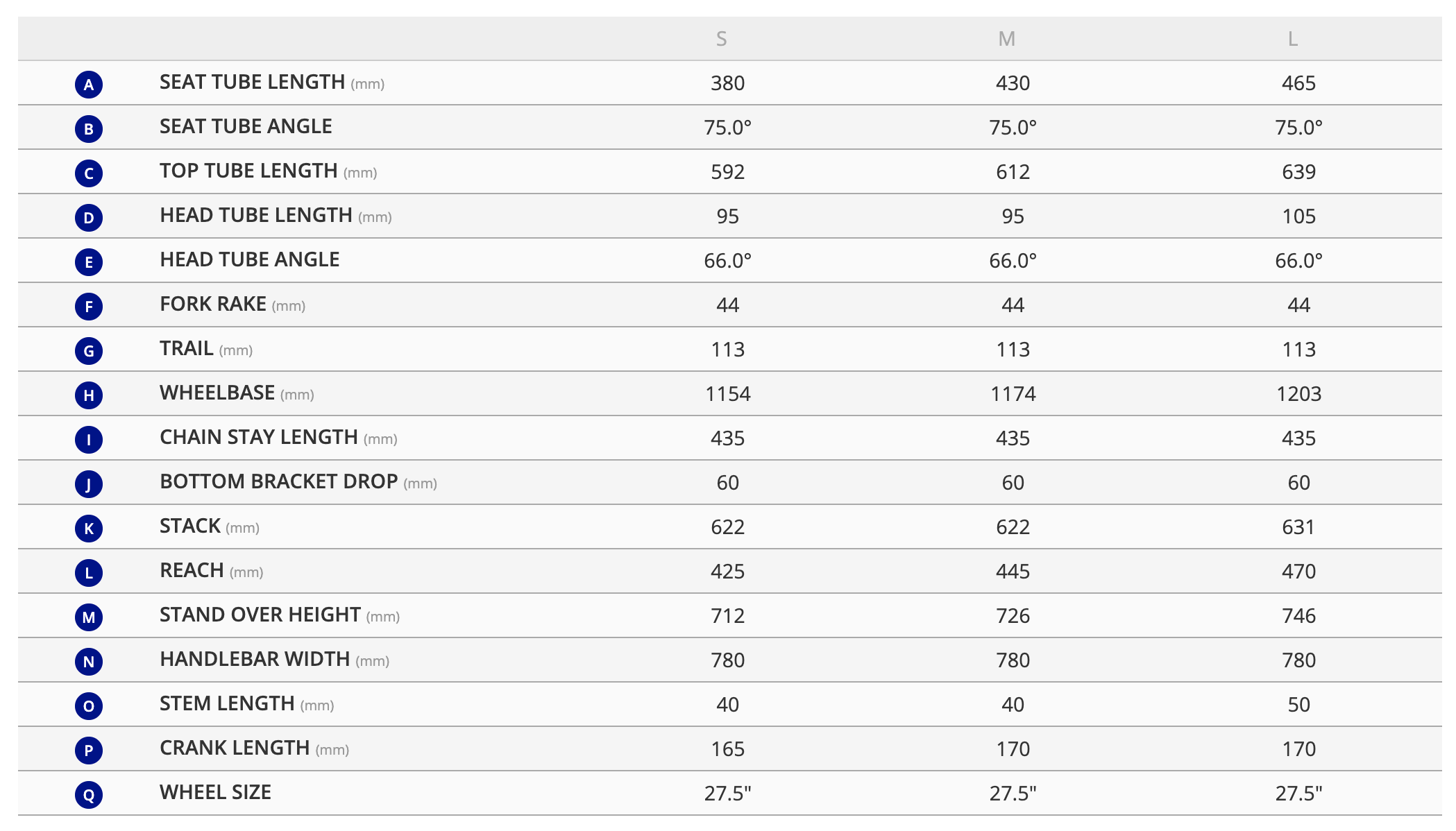

Balanced geometry with a 75-degree seat tube angle puts the rider in a powerful pedaling position on the climbs, while a slacker 66-degree head angle boosts confidence and control on technical descents. ALUXX SL aluminum frameset is hand-built in-house by the world leader in aluminum engineering.
Responsive Handling
Lightweight ALUXX SL aluminum hardtail frame offers agile acceleration and maneuverability to help riders climb, corner, and hammer the flats with efficiency and speed.
Smooth Control
Giant Crest 34 suspension fork with 130mm of travel absorbs roots, rocks, and ruts. Grippy, high-volume tires boost traction on rugged terrain. And, a dropper seatpost with handlebar remote lets you adjust saddle height on the fly for confident positioning on changing terrain.
Specs
Frame | ALUXX SL-Grade Aluminum |
---|---|
Fork | Giant Crest 34 RCL, 130mm, Boost 15x110, *note: early production bikes may be substituted with RockShox 35 Silver TK, 130mm, Boost 15x110 |
Rims | Giant AM 27.5 wheelset, alloy, 30mm inner |
Hubs | Giant Performance Tracker, [F] Boost 15x110mm [R] Boost 12x148mm |
Spokes | Sapim |
Tires | Maxxis Ardent Race 27.5x2.6", folding, TR |
Bottom Bracket | SRAM DUB, press fit |
Crankset | SRAM SX Eagle, DUB, 30t |
Shifters | SRAM SX Eagle |
Rear Derailleur | SRAM NX Eagle |
Cassette/Freewheel | SRAM SX Eagle, 12-speed, 11x50 |
Chain | SRAM SX Eagle |
Brakes | Shimano MT420 hydraulic 4-piston, 180mm, *note: early production bikes may be substituted with Shimano MT200 hydraulic, 180mm |
Brake Levers | Shimano MT401, *note: early production bikes may be substituted with Shimano MT201 |
Handlebars | Giant Contact Trail, 35 |
Stem | Giant Contact SL 35 |
Seatpost | Giant Contact Switch dropper with remote, 30.9 |
Saddle | Giant Romero |
Pedals | Sold separately |
* Subject to change without notice.
