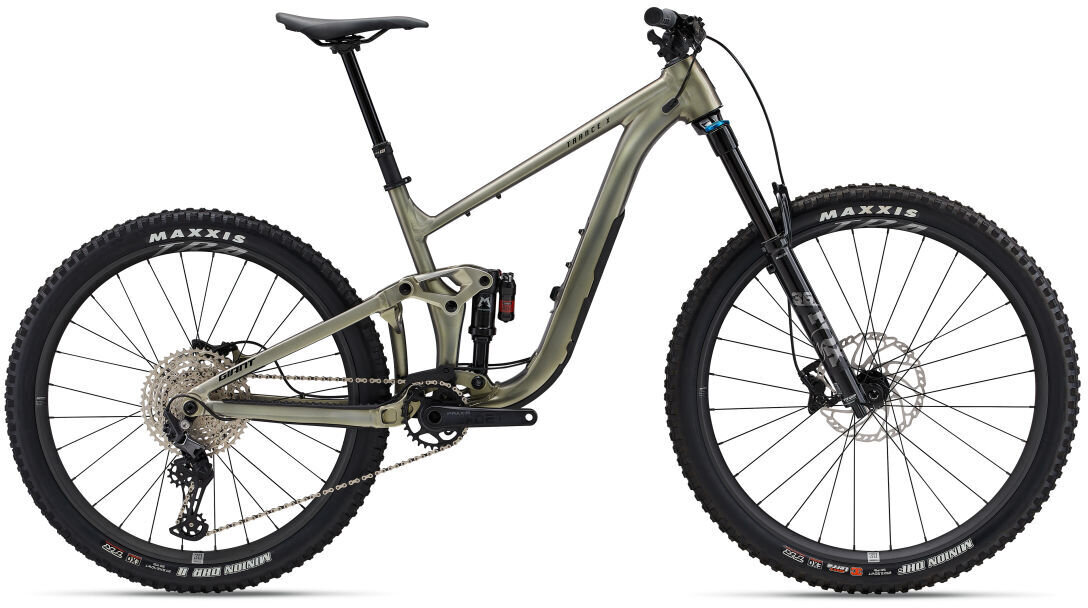

Giant Trance X SX
Details
From loam to chunder, alpine peaks to desert rock, this trail slayer has a 29-inch front wheel and 27.5-inch rear for the ultimate combo of quickness and control. With 145mm of rear suspension, a beefy 160mm fork, and adjustable geometry, it’s ready to let loose on black diamond descents.
Updated suspension
This “SX” series features all-new Maestro rear suspension with added travel (145mm) for technical singletrack and rugged descents. The trunnion mount shock and Advanced Forged Composite rocker arm combine for a longer stroke that has a smooth, active feel, plus greater stiffness in the chassis for precision control. The rear suspension is paired with a longer travel 160mm fork, giving riders superior confidence and control on the descents.
Adjustable trail geometry
A three-position Maestro flip chip lets riders dial in frame geometry to suit their riding style and terrain. The high setting adds more ground clearance, a good option for tight, technical terrain. In the low setting, the head tube gets slacker and the bottom bracket drops, ideal for confident handling at higher speeds. The middle position is neutral. In addition, a new headset flip chip adjusts reach so you can easily achieve your preferred positioning.
Mixed wheel setup
A 29-inch front wheel provides speed, stability and front-end control on rough, technical trails. A 27.5-inch rear wheel adds agility and maneuverability to help riders rail corners, pop over features and show off their style.
Sizes
S, M, L, XL
Colors
Golden Haze
Frame
ALUXX SL-Grade Aluminum front and rear triangles, 145mm Maestro suspension, 12x148mm thru-axle, 27.5-inch rear wheel compatible, flip chip - Maestro 3, flip chip - headset, integrated down tube storage and under-top tube storage mounts
Fork
Fox 36 Float Rhythm, 160mm, GRIP damper, 15x110 Kabolt X, 44mm offset
Shock
Marzocchi Bomber Air, two-position compression sweep, 185/55, custom tuned for Giant
Handlebar
Giant Contact TR35, alloy, 780x35mm, 20mm rise
Grips
Giant Tactal Pro Single Lock-On, 132x35mm
Stem
Giant Contact SL 35 S:40mm, M:40mm, L:50mm, XL:50mm
Seatpost
Contact Switch AT dropper, remote S: 110-140mm travel / 30.9 x 395mm M: 140-170mm travel / 30.9 x 470mm L: 170-200mm travel / 30.9 x 530mm XL: 170-200mm travel / 30.9 x 530mm
Saddle
Giant Romero SL
Pedals
N/A
Shifters
Shimano Deore, 1x12
Rear Derailleur
Shimano Deore, Shadow +
Brakes
Shimano BR-MT420, hydraulic, four piston, Shimano RT-66 rotors [F]203mm, [R]180mm
Brake Levers
Shimano Deore BL-MT401
Cassette
Shimano Deore M6100, 10x51
Chain
KMC X-12
Crankset
Praxis Cadet HD M24, 30t, 55mm chainline S:165mm, M:170mm, L:170mm, XL:170mm
Bottom Bracket
Praxis, press fit
Rims
Giant TRA 2 wheelset, 6061 alloy, hookless, 30mm inner width, 40mm outer width, 21mm height, Wide Guard Technology
Hubs
[F] Giant MTB alloy, six-bolt [R] Giant MTB alloy, 72t POE (Points of Engagement), six-bolt, MicroSpline driver body
Spokes
Sapim, 28, J-bend
Tires
[F] Maxxis Minion DHF, 29x2.5 WT, 60 tpi, EXO, TR [R] Maxxis Dissector 27.5x2.4 WT, 60 tpi, EXO TR, tubeless
Extras
tubeless prepared, 2.5" max tire size, 34t max chainring size, 3M tailgate protector, down tube and chainstay protection
Part Numbers
| Option | UPC | MPN | Store SKU |
|---|---|---|---|
| Golden Haze / Small | 4712878976986 | 1110004104 | 210000039376 |
| Golden Haze / Medium | 4712878976993 | 1110004105 | 210000039375 |
| Golden Haze / Large | 4712878977006 | 1110004107 | 210000039374 |
| Golden Haze / X-Large | 4712878977013 | 1110004108 | 210000039373 |
