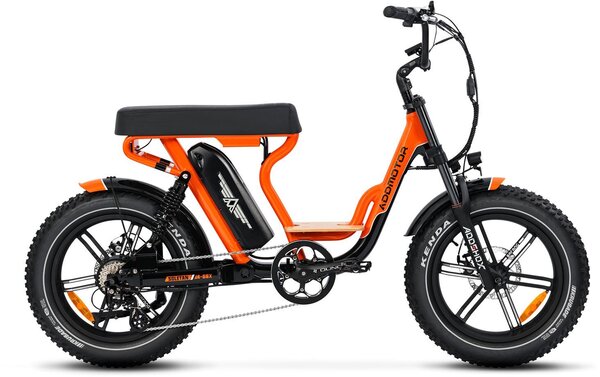

Addmotor SOLETAN M-66X

Addmotor SOLETAN M-66X
  • Color: Orange
  • Color: Orange
  • Color: Orange
  • Color: Yellow
  • Color: Yellow
  • Color: Black
  • Color: Black
  • Color: Black
  • Color: White
  • Color: White
$2,099.99
$2,399.99
Please select options Unavailable

Details

Designed on the basis of the M-66 R7, SOLETAN M-66X Cruiser Electric Bike still maintains
the 1970's retro outstanding look and step-thru frame. With a new white line decorated
on the tires, it's still the most impressive electric bike in the market.

Specs

Frame 6061 Aluminum Alloy Step-Thru Frame
Front Fork Addshox Spring Suspension Fork, Triple Clamp, 32.5mm Steel Stanchions, 80 mm Travel, Preload Adjust, Boost 135 mm Hub Spacing, 9 mm Skewer with Bolts
Headset Neco, Threadless Internal Cups, Straight 1-1/8”
Rims/Wheels Cast Alloy, Double Walled
Spokes 12-Gauge High-Strength Spokes
Tires Tektro Aries Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edge, Motor Inhibitors, and Bell on Left
Crankset Ounce, Alloy, 170 mm Length, 42 Tooth Chainring with Double-Sided Alloy Chain Guard
Rear Derailleur Shimano 7 Speeds / ALTUS M310
Shifters SHIMANO Right Thumb Shifter 7-Speed, SIS Index System
Handlebars Adjustable U Style Curved Handlebar, Adjust The Angle and Height
Tape/Grips Ergonomic, Stitched Faux Leather, Black
Stem romax, Alloy, Adjustable Angle (-10º to 100º), Alloy, 110 mm Length, Four 10 mm Spacers
Brake Rotors Tektro Aries Mechanical Disc with 180 mm Rotors, Tektro Four-Finger Levers with Rubberized Edge and Motor Inhibitors
Brakes Tektro Aries Mechanical Disc with 180mm Rotors, Four-Finger Levers with Rubberized Edge, Motor Inhibitors, and Bell on Left
Pedals Wellgo Alloy Platform with Pins
Saddle Banana Seat (23” x 8.5”), Faux Leather, Black
Gearing 7 Speed 1x7 Shimano Altus Derailleur, Shimano MF-TZ500-7 Cassette 14-28 Tooth
Motor Bafang 48V*750W Rear Brushless Gear Motor.
Battery Samsung 20AH (21700-5000mah), 8-10 Hours Fully Charged Time, Rated For 1000-1500 Cycles
Display Addmotor EB 2.0 Multiple Function LCD Display (Increase to 7 PAS)
Controller Addmotor EB 2.0 25A Controller, Upgraded to A Chip Type
Throttle Variable Speed Control - 1/2 Twist Throttle With Power-Cut Switch
Headlight Supplies a brightness of 40 lumens, a visible distance of 200m, and a 180° side view.
Taillight UL certificate, With driving light, left and right turn signals, danger light, flashlight, brake light
Charger 48V*2.0Ah 5 Pins US Standard DC Charger, 7-shaped Head Design
Pedal Assist Intelligent 7 Levels Pedal Assist, Speed Sensor (7 PAS)
Charger Port 5 Pins With Auto Magnetic Suction Customized Snap Lock
Range Up to 105 Miles Per Charge with PAS 1 (Estimate Miles)
Wiring Water-Resistant Connectors and Wiring Harness

* Subject to change without notice.

Part Numbers

Option MPN Store SKU
Orange EB66X75 210000034164
Yellow EB66X76 210000034162
Black EB66X79 210000034439
White EB66X70 210000034328
