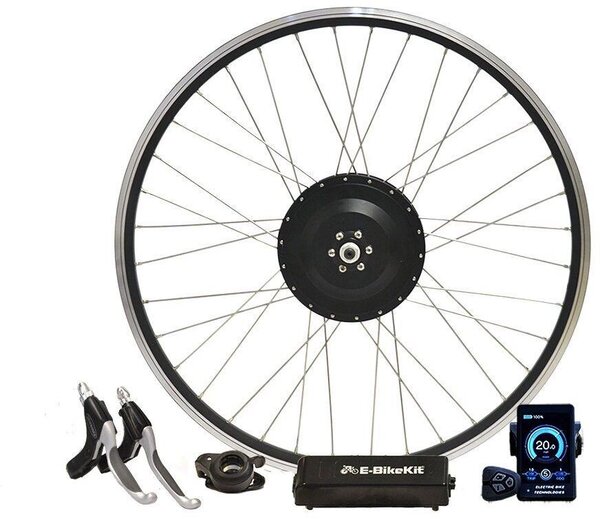

E-BikeKit Front 500-1000w Direct-Drive Hub Motor Conversion Kit w/ Pedal-Assist and Throttle On Demand functions
New Programmable LCD.
The E-BikeKit is designed for convenience, performance, and reliability. With an LCD dashboard control panel and 48v 12FET controller, the system is easy to install and even easier to use. All E-BikeKit system components are compatible with both 36v and 48v battery packs. The controller and LCD are also compatible with all motor types offered by E-BikeKit.
Your choice of battery.
Type: Internally Geared (brushless, and disc brake compatible)
Power: 500w Nominal / > 1000w @ 48v
Max Torque: 84Nm @ 48v
Max RPM: 320 @ 48v
Cable: 8" Axle Exit, 3-Phase / 5 Hall Effect
Connector: Round 8-Pin 13/32" (10.4mm)
Weight: 9.4 lbs (4.26 kg)
Warranty: 1 Year (up to 48v - 300 lbs max load)
Note: The geared 500w “Performance” motors feature an internal clutch to reduce drag, and can not read speed or mileage when not in use.
